Bakk Trakker (GPS)


(click to enlarge)









Video (.mp4, 29s)

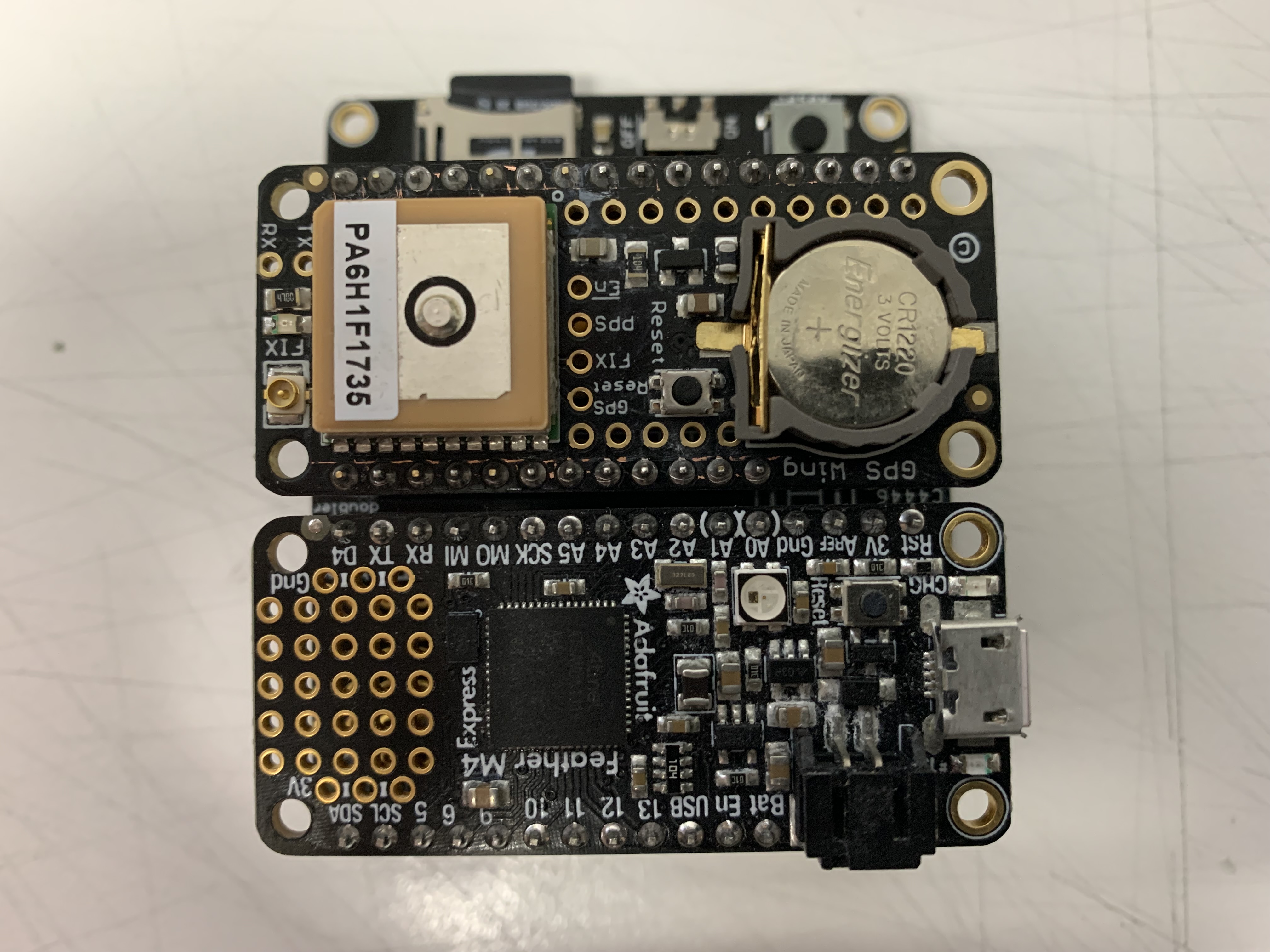

Assembled Project

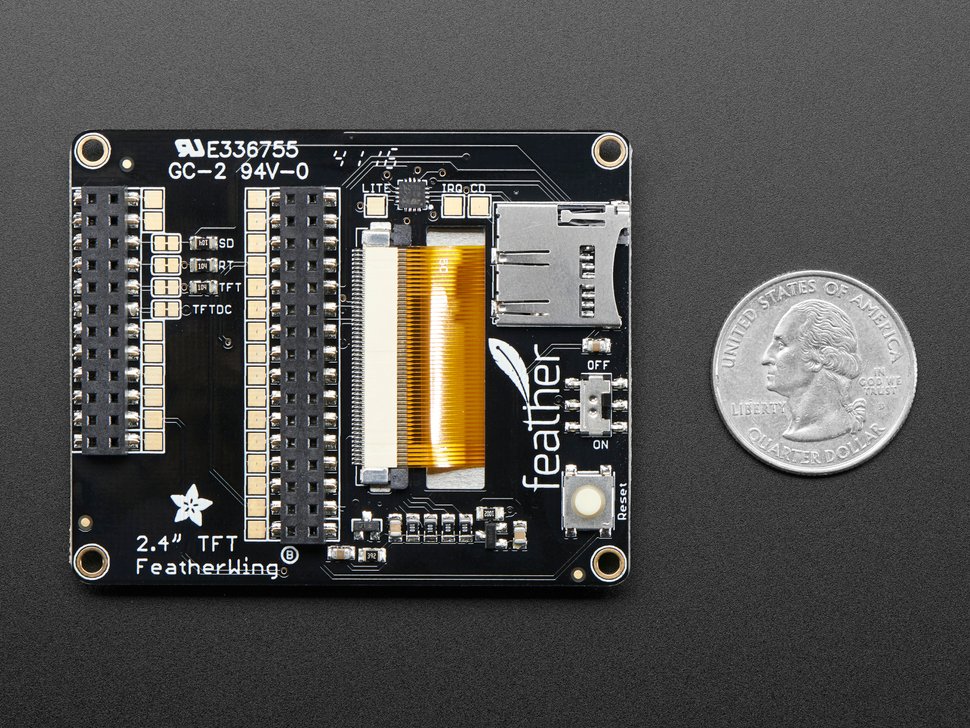

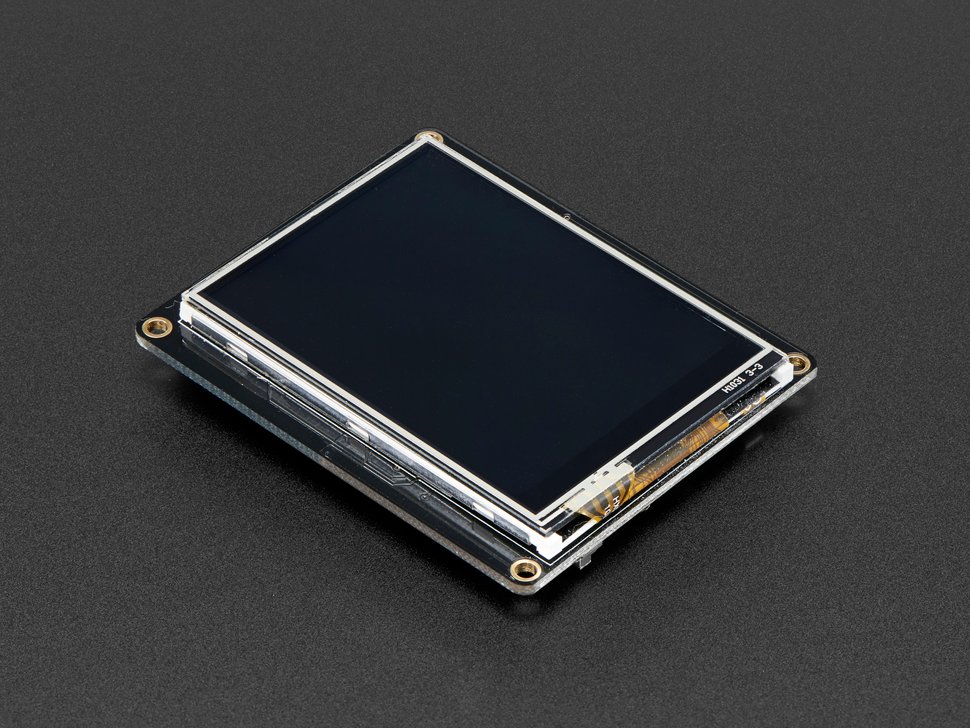

2.4"Colour Touchscreen Display

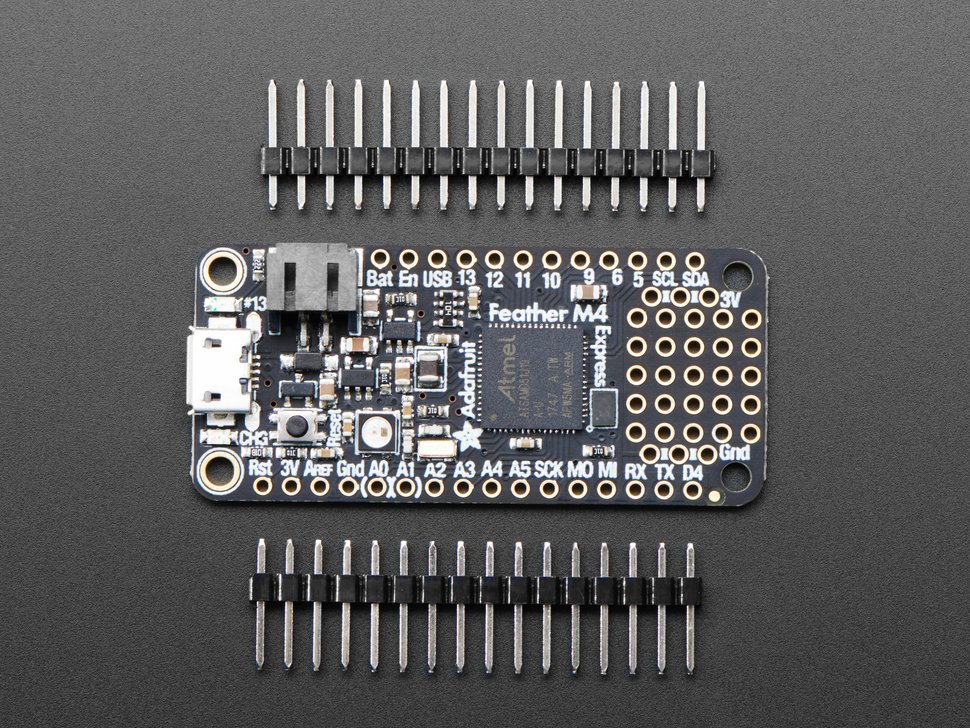

Feather M4 Express Microcontroller

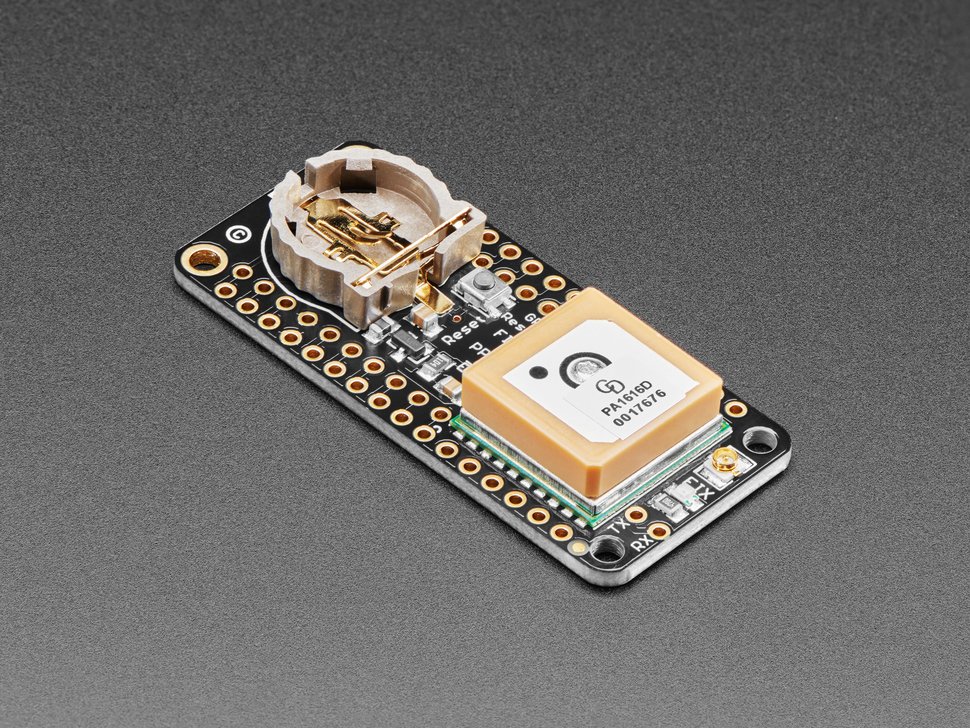

Ultimate GPS FeatherWing

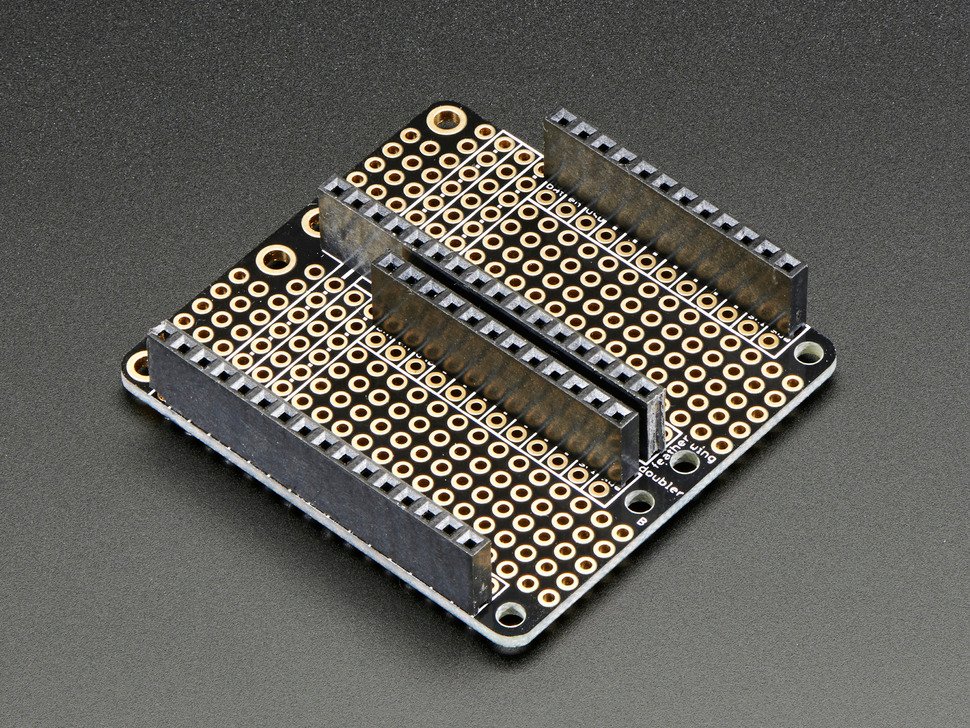

FeatherWing Doubler Prototyping Bd.

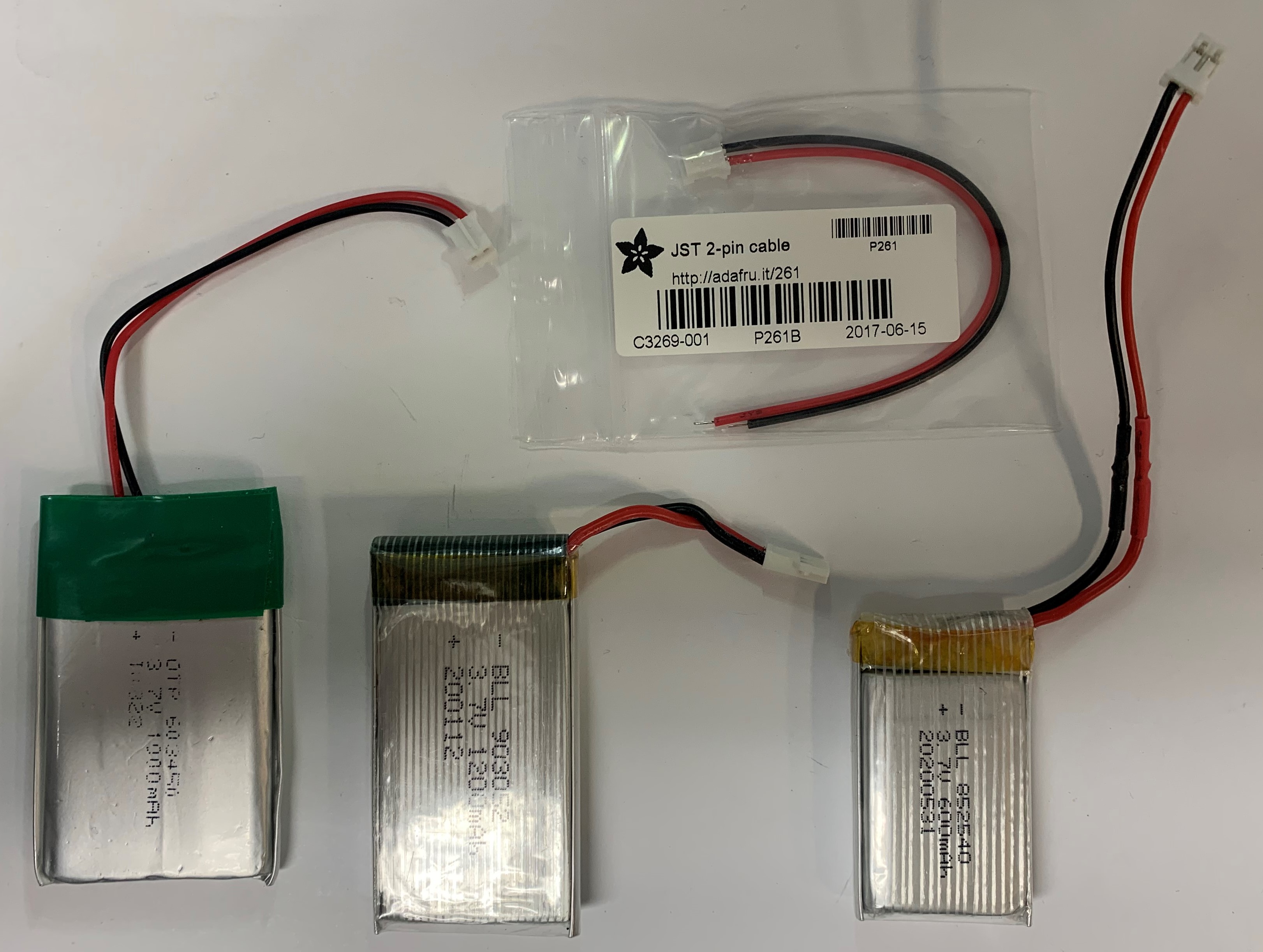

LiPo Battery & JST Cable


Arduino C/C++ Code



A handy device that can track where you've been.



 - Adafruit Feather M4 Express microcontroller

 - Adafruit 2.4" 320x240 TFT LCD touchscreen FeatherWing peripheral

 - Adafruit Ultimate GPS FeatherWing peripheral

 - Adafruit FeatherWing doubler prototyping board for attaching peripherals

 - LiPo 3.7v battery and 2-pin JST cable



 - Time & date (provided by the GPS, accurate to within one second), coin cell battery backup

 - GPS coordinates & stats

 - Plots your starting and current location

 - LiPo battery power & 2-pin JST cable

 - Arduino C/C++ code can be changed via the miniUSB connector

 - Display is timed out and backlight is disabled (to save battery power) after a short time interval on every screen (except GPS Plot)


Power Input:

 - LiPo battery (3.7v) or miniUSB: 5vDC


Use Case:

Press Start GPS Plot when you leave your vehicle, then pocket the device.

When you return to the parking lot you have a general idea of where your vehicle was parked based on the plotted path you walked.


Possible Improvements:

 - Push the GPS plots into an array so they can be restored anytime until Clear GPS Log is chosen

 - Push the plots onto the display's microSD card for permanent storage

 - Build a small 3D-printed project case


Updated 2022-02-17 @ 8am
